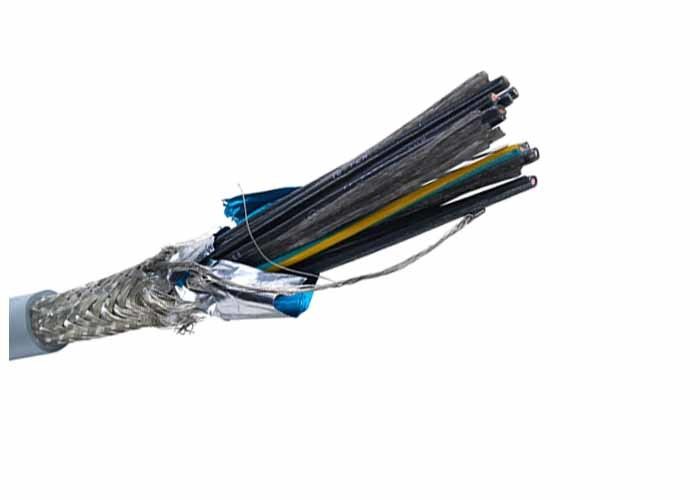

Pvc Insulated Multicore Control Cable Tinned Copper Wire 60 X 1.5sqmm

Pvc Insulated Multicore Control Cable Tinned Copper Wire 60 X 1.5sqmm

MOQ: 100m
Precio: USD 0.87-2.66/M
Embalaje Estándar: Tambor de madera
Período De Entrega: 7 días después del depósito recibido
Método De Pago: L / C, T / T
Información detallada
Lugar de origen
China
Nombre de la marca
QINGDAO YICABLE CABLE
Certificación
KEMA/CE/ISO/TUV
Escudo:
Alambre de cobre estañado
Aislamiento:
PVC
conductor:
7/0.53m m
Color de la chaqueta:
Negro
tensión:
450/750V
Temporeros:
70 grados
Muestra:
Disponible
Resaltar:

multicore power cable

,

multi core electrical cable

Descripción del Producto

Tinned Copper Wire Braid PVC Insulated Control Cables Multicore 60 x1.5SQ.MM With Top Quality



1. standards



GB/T 9330.1-2008 GB/T9330.2-2008 GB/T 19666-2005



2.application



This product is suitable for AC rated voltage 450/750V and the following control, monitoring circuit and protection circuit and so on.



3.Use characteristics



3.1 The conductor of the cable is the maximum operating temperature of 70.



3.2 Ambient temperature is not less than 0℃



3.3 Cable flame retardant properties meet the requirements of the corresponding indicators in the

GB/T19666-2005 standard.







Similar products

Model Name
kvv zr-kvv PVC insulated and sheathed control cable
kvvp zr-kvvp PVC insulated PVC sheathed braided shield control cable
kvvp2 zr-kvvp2 PVC insulated PVC sheathed copper shield control cable
kvv22 zr-kvv22 PVC insulated PVC sheathed steel tape armored control cable
kvvp2-22 zr-kvvp2-22 PVC insulated PVC sheathed copper tape armored control cable
kvvp-22 zr-kvvp-22 PVC insulated PVC sheathed copper wire armored control cable
kvv32 zr-kvv32 PVC insulated PVC sheathed steel wire armored control cable
kvvr zr-kvvr PVC insulated PVC sheathed control flexible cable
kvvrp zr-kvvrp PVC insulated PVC sheathed braided shield control flexible cable

Note: ZR(A/B/C)IS equivalent to Z(A/B/C)
