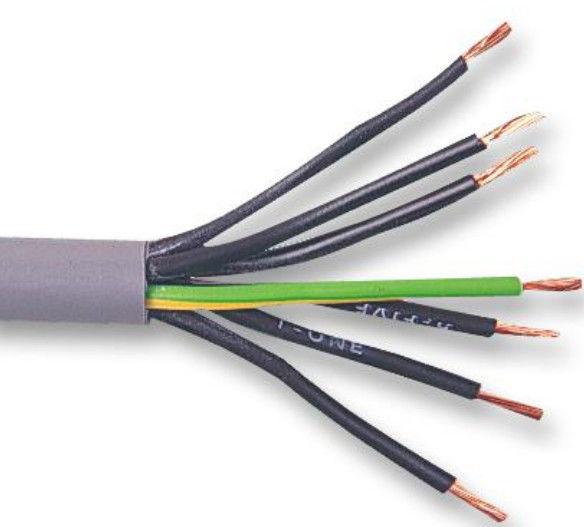

Environmental Protection Control Cable Wire Steel Tape Armoured Cable Copper Tape Screen
  • Environmental Protection Control Cable Wire Steel Tape Armoured Cable Copper Tape Screen
Environmental Protection Control Cable Wire Steel Tape Armoured Cable Copper Tape Screen

Environmental Protection Control Cable Wire Steel Tape Armoured Cable Copper Tape Screen

Lugar de origen China
Nombre de la marca QINGDAO YICABLE CABLE
Certificación CE/KEMA/CCC/TUV
Detalles del producto
Centro:
Entre 4 y 61
Armadura:
Cinta de acero
Pantalla de metal:
Cinta de cobre
Tamaño:
0.75mm2 a 10mm2
Tipo de conductor:
Clase A o B
Aislamiento:
CLORURO DE POLIVINILO
Fuera de la vaina:
CLORURO DE POLIVINILO
Resaltar:

multicore power cable

,

multi core electrical cable

Términos de Pago y Envío
Cantidad de orden mínima
1000M
Precio
USD 0.4 To 10.5 per Meter
Detalles de empaquetado
Tambores de acero de madera
Tiempo de entrega
10-15 DÍAS
Capacidad de la fuente
los 8KM por día
Descripción del Producto

Environmental Protection Control Cable Wire Steel Tape Armoured Cable Copper Tape Screen





Descriptions:



Conductor: Solid or Stranded Copper Conductor

Insualtion: PVC

Screen: Copper Tape

Inner Sheath: PVC

Armor: Steel Tape

Sheath: PVC



Operating characteristics



Rated voltages U0/U: 450/750V

Permissible Max. continuous operating temperature of conductor:

PVC insulated: 70°C

Upon short circuit (Max. Duration time 5s) the Max.

temperature of conductor not higher than:

PVC insulated: 160°C;

Ambient temperature of installation not less than 0°C.





Application:



For system connection wire of control, signal, protection or measuring with rated voltage up to and including 450/750KV.



Standard:



IEC Standard: IEC 60227, IEC60228

China Standard: GB9330

Other standards such as BS,DIN and ICEA upon request



Certificates



CE, RoHS, CCC, KEMA and more others at request



Why Choose SHAN CABLE



Here's Shanghai Shenghua Cable Is Committed to Offer for Every Customer:

High quality cable product with competitive price;

OEM cable product

Custom design per specific cable requirements and budgets;

Fast and on-time delivery of cable;

Flexible business deal;

Chief cable engineer with over 40 years' experience;

Harmonious colleague and customer relationship;

All cable products 100% Inspection;

Comprehensive after-sale service.



Technology Data



Cross-Sectional
Area mm2		 Thickness of
Insulation mm		 Thickness of Copper tape Screen
mm		 Thickness of
Steel Tape mm		 Thickness of
Sheath mm		 Overall Diameter
mm		 Min resistance of
insulation at
70℃ MΩ/km		 Max.D.C resistance
of at 20℃
MΩ/km		 Approx Weight
(kg/km)
min max
4x2.5 0.8 0.05-0.1 2x0.2(0.3) 1.5 13.5 16.2 0.001 7.41 470
4x4 0.8 0.05-0.1 2x0.2(0.3) 1.5 14.5 17.5 0.0085 4.61 525
4x6 0.8 0.05-0.1 2x0.2(0.3) 1.5 15.7 18.9 0.007 3.08 640
4x10 1 0.05-0.1 2x0.2(0.3) 1.7 19.5 23.6 0.0065 1.83 970
5x2.5 0.8 0.05-0.1 2x0.2(0.3) 1.5 14.4 17.3 0.001 7.41 526
5x4 0.8 0.05-0.1 2x0.2(0.3) 1.5 15.5 18.7 0.0085 4.61 606
5x6 0.8 0.05-0.1 2x0.2(0.3) 1.7 16.8 20.3 0.007 3.08 757
5x10 1 0.05-0.1 2x0.2(0.3) 1.7 21.2 25.5 0.0065 1.83 1145
7x0.75 0.6 0.05-0.1 2x0.2(0.3) 1.5 11.9 14.3 0.012 24.5 337
7x1.0 0.6 0.05-0.1 2x0.2(0.3) 1.5 12.3 14.7 0.011 18.1 445
7x2.5 0.7 0.05-0.1 2x0.2(0.3) 1.5 13.3 16.2 0.01 7.41 574
7x4 0.8 0.05-0.1 2x0.2(0.3) 1.5 15.3 18.5 0.0085 4.61 723
7x6 0.8 0.05-0.1 2x0.2(0.3) 1.7 18.1 21.8 0.007 3.08 930
7x10 1 0.05-0.1 2x0.2(0.3) 1.7 22.8 27.4 0.0065 1.83 1430
10x0.75 0.6 0.05-0.1 2x0.2(0.3) 1.5 13.9 16.8 0.012 24.5 470
10x1 0.6 0.05-0.1 2x0.2(0.3) 1.5 14.5 17.5 0.011 18.1 580
10x1.5 0.7 0.05-0.1 2x0.2(0.3) 1.5 16.2 19.6 0.011 12.1 780
10x2.5 0.8 0.05-0.1 2x0.2(0.3) 1.7 18.9 22.8 0.01 7.41 986
10x4 0.8 0.05-0.1 2x0.2(0.3) 1.7 20.6 24.9 0.0085 4.61 1256
10x6 0.8 0.05-0.1 2x0.2(0.3) 1.7 22.6 27.2 0.007 3.08 1589
