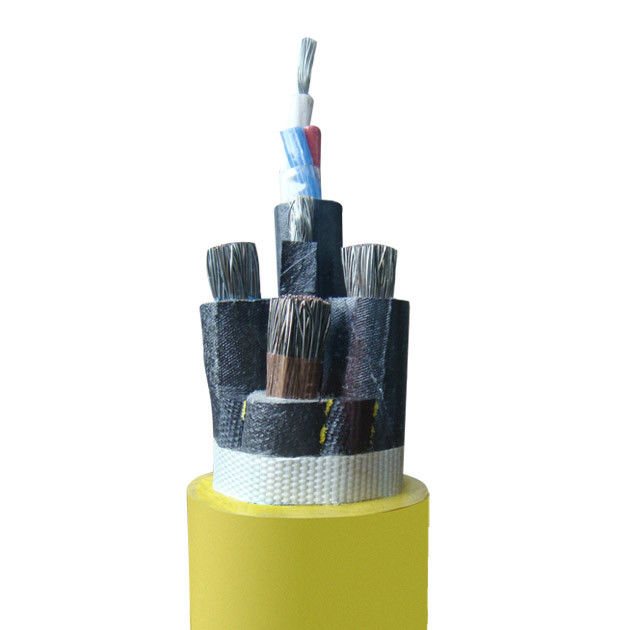

1.9kv / 3.3kv Shield Rubber Sheathed Soft Cable For Coal Mining Machine
  • 1.9kv / 3.3kv Shield Rubber Sheathed Soft Cable For Coal Mining Machine
  • 1.9kv / 3.3kv Shield Rubber Sheathed Soft Cable For Coal Mining Machine
  • 1.9kv / 3.3kv Shield Rubber Sheathed Soft Cable For Coal Mining Machine
  • 1.9kv / 3.3kv Shield Rubber Sheathed Soft Cable For Coal Mining Machine
  • 1.9kv / 3.3kv Shield Rubber Sheathed Soft Cable For Coal Mining Machine

1.9kv / 3.3kv Shield Rubber Sheathed Soft Cable For Coal Mining Machine

Lugar de origen China
Nombre de la marca QINGDAO YICABLE CABLE
Certificación KEMA/CE/TUV/ISO
Detalles del producto
Base de la línea eléctrica:
BASE 3
Base de tierra:
1 base
Controle la base:
base 3 o 4
Tamaño de base de la línea eléctrica:
16-150 mm2
Chaqueta:
Caucho
Aislamiento:
Caucho
voltaje del ratef:
1.9/3.3kv y abajo
Resaltar:

trs flexible cable

,

rubber sheathed cable

Payment & Shipping Terms
Cantidad de orden mínima
500m
Precio
US $1.2-100 / Meter
Detalles de empaquetado
Tambor de madera
Tiempo de entrega
30 días
Capacidad de la fuente
el 10KM por mes
Descripción del Producto

Shield rubber sheathed soft cable for coal mining machine at rated voltage 1.9/3.3kv and below



1.Application



Rated voltage of power supply of 1.9/3.3kv and below mining and similar equipment connected



2.Conditions of Use



The line core allows for a long time working temperature of 65 degrees, the minimum bending radius of the wire is 6 times the diameter of the cable. The yellow jacket cable shall not be exposed to the sun for long time.



3.Model

MCP

1.9kv / 3.3kv Shield Rubber Sheathed Soft Cable For Coal Mining Machine 0





4.Specification size

MCP-0.38/0.66KV

Core x Conductor Nominal section(mm2) Nominal thickness(mm) Cable outside diameter(mm)
Power line core Ground core Control core Power line core insulation thickness minimum value Maximum value
3x16 1x4 3x2.5 1.6 4.5 33.0 38.0
3x25 1x6 4x2.5 1.8 5.5 39.0 45.0
3x35 1x6 4x4 1.8 5.5 42.5 48.3
3x50 1x10

4x4

 2.0 5.5 47.5 54.5
3x70 1x16 4x6 2.0 6.0 53.0 60.5
3x95 1x25 4x6 2.2 6.0 59.5 67.0
3x120 1x25 4x6 2.4 6.0 63.5 72.0
3x150 1x35 4x10 2.4 6.0 68.5 76.5
3x185 1x35 4x10 2.6 6.0 74.3 82.5



The above parameters are only part of the parameters, for reference only.



FAQ



Q1. Can I have a sample order for cable?

A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production needs 2-3 weeks .

Q3. Do you have any MOQ limit for cable?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for yolarlink cable?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 1 year warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new cable with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
