Rated Voltage 0.66 / 1.14kv Rubber Sheathed Cable And Below Coal Mines

Productos

humo bajo cero cable del halógeno

alambre de cobre aluminio revestido

cable del soplete

Contacta con nosotros

Mr. Aric

atwood.lee@hold-one.com

86-- 18724796885

Contactar ahora

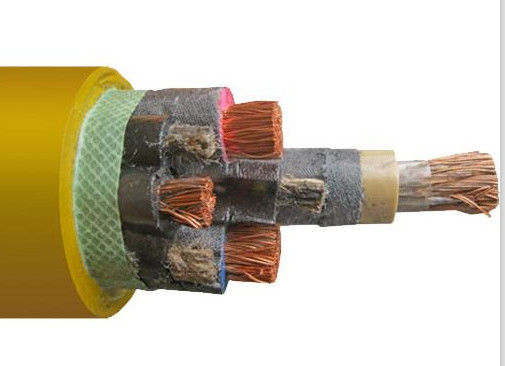

Rated Voltage 0.66 / 1.14kv Rubber Sheathed Cable And Below Coal Mines

MOQ:	500m
Precio:	US $1.2-100 / Meter
Embalaje Estándar:	Tambor de madera
Período De Entrega:	30 días
Capacidad De Suministro:	el 10KM por mes

Detalles Información

Descripción del Producto

Información detallada

Lugar de origen

China

Nombre de la marca

QINGDAO YICABLE CABLE

Certificación

KEMA/CE/TUV/ISO

conductor:

Cobre

Aislamiento:

Caucho

Chaqueta:

Caucho

Escudo:

cobre estañado

Aplicación:

mina

estándar:

MT-818-2009, Q/ILXD37-2009)

Temperatura de trabajo permisible:

65℃

Tamaño:

1.5-70

Núcleo:

1-3

Resaltar:

rubber insulated wire

rubber sheathed cable

Descripción del Producto

Rated voltage 0.66 / 1.14kv and below coal mines with flexible cables

product description

Rubber cable is a multi-strand thin copper wire conductor, outsourcing rubber insulation and rubber sheath of a soft removable cable varieties. In general, including general-purpose rubber soft cable, welding machine cables, submersible motor cables, radio cables and photographic equipment, and other varieties of light cables.

1.Application

This product is used for mining rubber sleeve soft cable series products.Suitable for rated voltage 0.66/1.14kv is Uo/U and the following coal mining ,achines and similar equipment for power supply connection.

2.Operation character

.The line core allows for a long time working temperature of 65 degrees, the minimum bending radius of the wire is 6 times the diameter of the cable. The yellow jacket cable shall not be exposed to the sun for long time.

3.Model name and usage

Model	Name	USE
MY-0.38/0.66	Mine mobile rubber flexible cable	Rated voltage is 0.38 / 0.66kv various underground mobile coal mining equipment power connection
MYP-0.38/0.66	Mine mobile rubber sheathed flexible cable	Rated voltage is 0.38 / 0.66kv various underground mobile coal mining equipment power connection
MYP-0.66/1.14	Mine mobile rubber sheathed flexible cable	Rated voltage is 0.66/1.14kv various underground mobile coal mining equipment power connection

Rated Voltage 0.66 / 1.14kv Rubber Sheathed Cable And Below Coal Mines 0

Type	Name	Power cores No.	Cross section of power cores (mm2)	Rated voltage	Rated temp.	Min. bending radius	Executive standard	Application
MC-0.38/0.66	Rubber sheathed flexible cable for coal mining machine	3	16~50	0.38/0.66	60ºC	6 times of cable diameter 6 times of cable diameter	MT-818.2-1999&IEC	The cables are suitable for coal mining machine and similar equipment as power connecting wire, rated voltage 1.9/3.3 and below.
MCP-0.66/1.14	Shield rubber sheathed flexible cable for coal mining machine	3	35/50~95	0.66/1.14	60ºC
MCP-1.9/3.3	Shield rubber sheathed flexible cable for coal mining machine	3	35~95	1.9/3.3	90ºC
MCPT-1.9/3.3	Metal shield rubber sheathed flexible cable for coal mining machine.	3	35~95	1.9/3.3	90ºC			The cables are suitable for coal mining machine and similar equipment as power connecting wire, rated voltage 1.9/3.3KV and below
MCPTJ-1.9/3.3	Metal shield surveillance-type rubber sheathed flexible cable for coal mining machine.	3	35~95	1.9/3.3	90ºC
MY-0.38/0.66	Rubber sheathed movable flexible cable for coal mine	3+1	4~70	0.38/0.66	65ºC			The cables are suitable for all kinds of movable equipment in coal mining as power connecting wire rated voltages 0.66/1.14KV and below
MYP-0.66/1.14	Rubber sheathed screened movable flexible cable for coal	3+1	10~95	0.66/1.14	65ºC
MYPTJ-3.6/6	Flexible rubber-sheathed cables with metallic screens and monitoring core for coal mine	3	16/3~25/3	3.6/6	90ºC			The cables are suitable for power connecting wiring of movable transformers and similar equipments in mine, rated voltage 3.6/6KV
MZ-0.3/0.5	Rubber sheathed cable for electric drill	3+1	2.5~4	0.3/0.5	65ºC			The cables are suitable for electric drill in coal mine as power connecting wiring, rated voltage is 0.3/0.5KV.
MZ-0.3/0.5	Rubber sheathed cable screened for electric drill	3+1	2.5~4	0.3/0.5	65ºC
MYQ-0.3/0.5	Rubber sheathed light-duty movable flexible cable for coal mine	2~4	1.0~2.5	0.3/0.5	65ºC			The cables are suitable for light in laneway, interlock of transportation machine and equipments of control and signal with rated voltage 0.3/0.5KV.
MYQ-0.3/0.5	Rubber sheathed light-duty movable flexible cable for coal mine	7&12	1.0~2.5	0.3/0.5	65ºC
MVV-0.6/1	Copper core PVC insulation and sheath flame retardant power cable for coal mine	3	1.5~300	0.6/1	70ºC	16 times of cable diameter r		The cables are used as power transmission line with rated voltage 0.6/1KV. They are suited to fixed laid in coal mine
MVV22-0.6/1	Copper core PVC insulation and sheath double-deck tape armored flame retardant power cable for coal mine	3 3+1 4	2.5~300 4~185 4~300	0.6/1	70ºC
MVV32-0.6/1	Copper core PVC insulation and sheath steel wire armored flame retardant power cable for coal mine	3	4~300	0.6/1	70ºC
MYJV-0.6/1	Copper core XLPE insulation and PVC sheath flame retardant power cable for coal mine	3	1.5~300	0.6/1	90ºC
MYJV22-0.6/1	Copper core XLPE insulation and PVC sheath double-deck flame retardant power cable for coal mine	3 3+1	4~300	0.6/1	90ºC
MYJV32-0.6/1	Copper core XLPE insulation and PVC sheath steel wire armored flame retardant power cable for coal mine	3	4~300	0.6/1	90ºC
