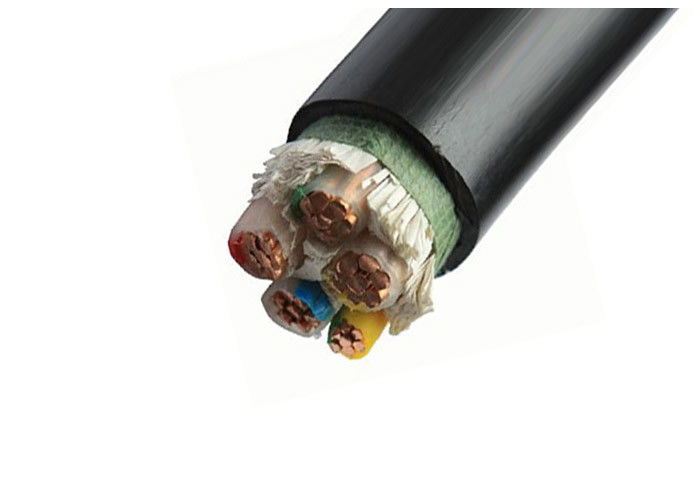

Multi Core FRC Low Smoke Zero Halogen Cable 0.6 / 1KV Mica Tape Screend LSZH Polyolefin Sheathed

Multi Core FRC Cable 0.6/1KV Mica Tape Screend LSZH Polyolefin Sheathed

Conductor: Class 2 annealed bare copper solid or strands. This wires are formed into final conductor in the stranding machines under strict quality surveillance.

Screen : Mica tape fire resistant screen

Insulation: Cross linked polyethylene compound or PVC is insulated over the conductors by extrusion process.The raw materials and thicknesses of Insulation are maintained as per standards and conform to IEC60502/BS7870 Standards as the case may be.

XLPE:Insulated Power Cable are identified either by colour or by numbers as follows:
No. of cores Identification
Old Colour coding New Colour coding as per requirement

Outer sheath : Standard cables are manufactured with Extruded black PVC. Outersheath is embossed or printed with the information required by relevant standards.
Special FR, FRLS, FRRT, LSF, MDPE compounds are used for outersheathing of cables, to suit customer’s specific requirements.

Standards

International: IEC 60502, IEC 60227 IEC 60331, IEC 61034

China: GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001

Other standards such as BS,DIN and ICEA upon request

Technical data:

Test voltage 0.6/1 kV [kV] 3.5 / 5 min.
Temperature range in motion -5°C till +70°C
fixed -20°C till +70°C
Operating temperature short circuit °C 250
Short circuit time max. [sec] 5
Bending radius min. x diameter 15
Flammability standard EN 60332-1-2

Main properties

Packaging Material:

Steel wooden drum (fumigation)

Cable length in each drum: 500m/1000m or as per actual cable length requirements.

Drum Size:

As per cable length and container size

*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!

Port: Shanghai,China, or other ports as per your requirements.

Sea freight: FOB/C&F/CIF quotation are all available.
