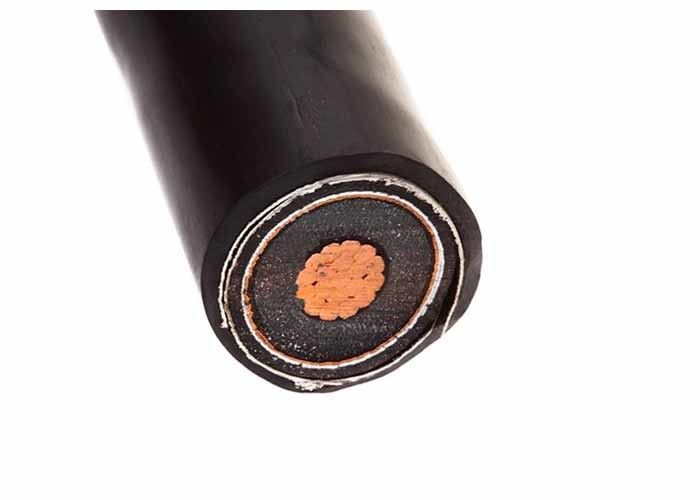

Single Phase HT 24KV Steel Tape Armoured Electrical Power Cable Biggest Cable manufacturer.
High Tension Armoured Power Cable Power Cable Details
YJ: XLPE insulation
V: PVC sheath
32:Steel wire armoring—3 cores
22:Steel tape armoring—3 cores
72: Aluminum wire armoring—1 core
62: Stainless steel tape armoring—1 core
ZR: Flame resistant
Construction
1 ..... stranded bare copper
2 ..... inner layer of semi-conducting material
3 ..... core insulation of cross-linked polyethylene
4 ..... outer layer of semi-conducting material
5 ..... semi-conducting tape
6 ..... screen of copper wires
7 ..... Fillers strip, Yarn, or Paper
8 ..... Non woven Wrapping tape or Flame Retardant
9 ..... Extruded PVC Inner Covering
10 .... Stainless Steel Tape Armoured
11 .... Overall Sheath: polyvinylchloride (PVC) or FR-PVC, PE, LSOH
| MV(11kv 15kv 33kv) Power Cable |
| Model and Description Uo/U(Um)=3.6/6(7.2), 6/6(7.2), 6/10(12), 8.7/10(12), 8.7/15(17.5), 12/20(24), 18/30(36), 21/35(40.5), 26/35(40.5)kV |
No.of Core |
Conductor cross-section area(mm2) |
| xlpe insulation |
1 core 3 core |
10 16 25 35 70 95 120 150 185 240 300 400 500 630 sq mm |
| Cu core |
| YJV, N2XSY;PVC sheathed power cable |
| YJV22;steel tape armoured,PVC sheathed power cable |
| YJV32,YJV42;steel wire armoured ,PVC sheathed power cable |
| Al Core |
| YJLV, NA2XSY; PVC sheathed power cable |
| YJLV22;steel tape armoured,PVC sheathed power cable |
| YJLV32,YJLV42;steel wire armoured ,PVC sheathed power cable |
Application
Used in transformer stations, switching blocks, in electric power plants and industrial plants. Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain.
Standards
International: IEC 60502-2, IEC 60228
China: GB/T 12706.2-2008
Other standards such as BS,DIN and ICEA upon request
Technical data:
| Test voltage |
6 / 10 kV |
[kV] |
21 / 5 min. |
| |
12 / 20 kV |
[kV] |
42 / 5 min. |
| |
18 / 30 kV |
[kV] |
63 / 5 min. |
| Temperature range |
in motion |
|
-20°C till +90°C |
| |
fixed |
|
-20°C till +90°C |
| Operating temperature |
short circuit |
°C |
250 |
| Short circuit time |
max. |
[sec] |
5 |
| Bending radius |
min. |
x diameter |
15 |
| Flammability |
standard |
|
EN 50265-2-1 |
*) Packing: CUT = cable in different lengths on drum or reel, possible cutting at required length
Certificate
ISO,CE, KEMA ,IEC, RoHS, CCC, P3C and more others at request
