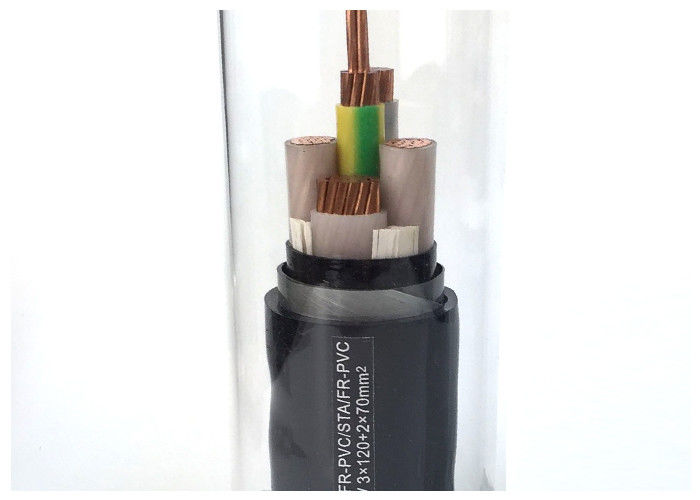

CU / XLPE / STA / PVC Steel Tape Armour Power Cable Cu conductor XLPE Insulation
  • CU / XLPE / STA / PVC Steel Tape Armour Power Cable Cu conductor XLPE Insulation
  • CU / XLPE / STA / PVC Steel Tape Armour Power Cable Cu conductor XLPE Insulation
  • CU / XLPE / STA / PVC Steel Tape Armour Power Cable Cu conductor XLPE Insulation
  • CU / XLPE / STA / PVC Steel Tape Armour Power Cable Cu conductor XLPE Insulation
  • CU / XLPE / STA / PVC Steel Tape Armour Power Cable Cu conductor XLPE Insulation

CU / XLPE / STA / PVC Steel Tape Armour Power Cable Cu conductor XLPE Insulation

Lugar de origen China
Nombre de la marca QINGDAO YICABLE CABLE
Certificación ISO,CE,IEC,TUV,KEMA
Detalles del producto
Nombre del producto:
Cable acorazado de cobre
Tensión nominal:
0.6/1kV
Aislamiento:
XLPE
conductor:
CU
armadura:
Cinta de acero
Tamaños:
1,0 a 630 Sqmm
Corazones:
corazones 1~ 5
Normas:
IEC/BS/ES/VDE
Resaltar:

armored electrical wire

,

armoured power cable

Payment & Shipping Terms
Cantidad de orden mínima
1000 metros
Precio
$0.25~105/M
Detalles de empaquetado
batería
Tiempo de entrega
una semana o un 10days
Condiciones de pago
T / T, L / C
Capacidad de la fuente
10.000 kilómetros por mes
Descripción del Producto

CU/XLPE/STA/PVC Steel Tape Armour Power Cable Cu conductor XLPE Insulation





Standards



IEC60502, BS6346, VDE, AS/NZS, UL,etc or as customer's request.





Rated Voltage(kV):



1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35
2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35




Number of cores:



1, 2, 3, 3+1, 3+2, 3+3, 4, 4+1, 4+2, 5 and so on.







Construction



Conductor : Solid or stranded Copper conductor, Cl.1 or Cl.2 as per IEC 60228
Insulation : XLPE(cross-linked polyethylene) rated at 90 OC
Inner covering : PVC
Armoring : Steel tape
Sheath : PVC type ST2 to IEC 60502, black









Applications



Used for power transmission and distribution line with voltage rated at 35kV and below.



Compared with PVC Insulated Power Cable, xlpe power cable boasts not only characteristics of excellent electricity, mechanism, heat and aging-resistant, environment stress-resistant and chemical corrosion-resistant, but also simple structure, light weight, no restriction by laying drop, and high temperature allowance for long-term working.







Model & Spec.



Type Desciption Rated Voltage NO. of Cores Nomibal section(mm2) Applications
YJV YJLV Cu or Al conductor,XLPE insulated.PVC sheathed electric cable 0.6/1KV 1,2,3,4 1.5 to 400 For laying indoors and outdoors.The LV XLPE insulated power cable is used in transmission and distribution system at rated voltagae U(Um) ≤10KV.The HV XLPE insulated power cable refers to the power cable transmission between 10KV-35KV, it is often applied to the main road of power transmission. Able to bear certain traction during installation, but not external mechanical forces.
3+1 3×4+1×2.5 to 3×400+1×185
6/6kV 1,3 25 to 500
8.7/10kV 8.7/15kV 12/20kV 1 25 to 500
3 25 to 300
21/35kv 1 50 to 500
YJV22 YJLV22 Cu or Al conductor,XLPE insulated steel tape armoured PVC sheathed electric cable 0.6/1KV 3 1.5 to 400 Suitable for burying in ground, Able to bear external mechanical forces but large pulling forces.
4 4 to 240
6/6kV 8.7/10kV 8.7/15kV 12/20kV 3 25 to 300
21/35kv 3 50 to 240





Technique property:



1,The long time working temperature is at 75℃, suffer short circuit (within 5 seconds), the temperature of core can not higher than 160℃

2,The ambient temperature should not lower than -10℃

3,The laying temperature should not lower than 0℃

4,Single core’s bend radius with no armor should not exceed 20D,single core’s bend radius with armor should not exceed than 15D,three cores’ bend radius with armor should not exceed 12D



Note:



1. Only a part of cables are listed in the table. Cables with other specifications can be inquired.

2. Cables can be supplied with a range of single mode or multi mode.
3. Specially designed Cables structure is available on request.





CU / XLPE / STA / PVC Steel Tape Armour Power Cable Cu conductor XLPE Insulation 0









PACKING AND SHIPPING



We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.



Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.






Services


♦ We are the one of biggest manufacture of electric wire and power cable in China and has more than 20 years producing and marketing experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and own design are welcome. We will produce according to your requirement and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
