XLPE Insulated PVC Sheath Aluminum Armoured Cable Low Votlage STA Armored XLPE Power Cable YJLV22

MOQ:	1000 metros
Precio:	US$0.3 -109 per Meter
Embalaje Estándar:	Tambores de madera
Período De Entrega:	10 DÍAS
Método De Pago:	T / T, L / C
Capacidad De Suministro:	10.000 kilómetros por mes

Detalles Información

Descripción del Producto

Información detallada

Lugar de origen

China

Nombre de la marca

QINGDAO YICABLE CABLE

Certificación

ISO,CE,IEC,TUV,KEMA

Nombre del modelo:

Cable acorazado de aluminio

Tensión nominal:

Baja tensión

Aislamiento:

XLPE

conductor:

De aluminio

armadura:

STA

Tamaños:

1~ 630sqmm

Corazones:

3+1cores

Material de la envoltura:

PVC

Normas:

IEC/BS/ES/VDE

Garantía:

2 años

Resaltar:

armored electrical wire

armoured power cable

Descripción del Producto

XLPE Insulated PVC Sheath Aluminum Armoured Cable Low Votlage STA Armored XLPE Power Cable YJLV22

Applications

Used for power transmission and distribution line with voltage rated at 35kV and below.

1,This kind of cable is fit for AC 50HZ, rated voltage 6/6kv(not higher than 7.2kv) electric distribution network and industrial devices fixed laying.

2,It is used in underground power grid of city building, and industrial mining enterprises’ power distribution.

3,It is conform to ZL30TM004097.1-2012 [YJY 0.6/35kV]

4,GB/T 12706-2008 rated voltage 1kV(Um=1.2kV)to 35kV(Um=40.5kV)

Construction

Conductor	Compact Stranded Aluminum Conductor, Class 2 as per IEC 60228
Conductor	Circular solid AL Conductor, Class 1 as per IEC 60228
Insulation	XLPE
Separate Screen	Copper Tape, Al-foil tape (MV must, LV optional)
Filler	Fillers strip, Yarn, or Paper
Wrapping Tape	Non woven
Inner Covering	Extruded PVC
Armour	Steel Tape armoring
Overall Sheath	PVC

Standards

IEC60502, BS6346, VDE, AS/NZS, UL,etc or as customer's request.

The Rated Voltage(kV):

1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35
2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35

Number of cores:

1, 2, 3, 3+1, 3+2, 3+3, 4, 4+1, 4+2, 5 and so on.

Technique property:

1,The long time working temperature is at 75℃, suffer short circuit (within 5 seconds), the temperature of core can not higher than 160℃

2,The ambient temperature should not lower than -10℃

3,The laying temperature should not lower than 0℃

4,Single core’s bend radius with no armor should not exceed 20D,single core’s bend radius with armor should not exceed than 15D,three cores’ bend radius with armor should not exceed 12D

Note:

1. Only a part of cables are listed in the table. Cables with other specifications can be inquired.

2. Cables can be supplied with a range of single mode or multi mode.
3. Specially designed Cables structure is available on request.

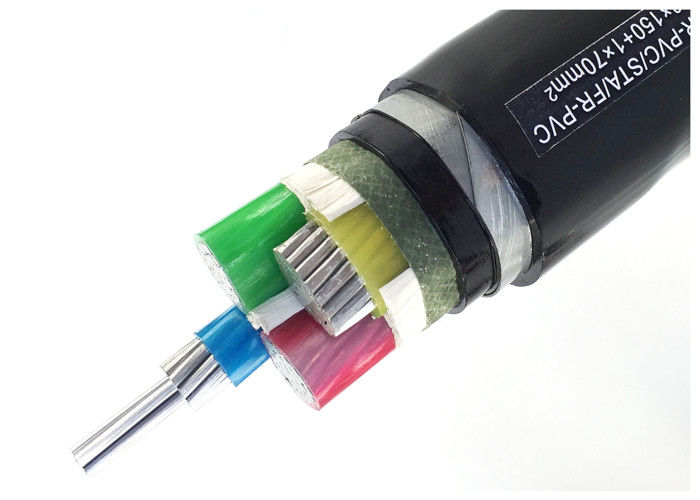

XLPE Insulated PVC Sheath Aluminum Armoured Cable Low Votlage STA Armored XLPE Power Cable YJLV22 0

Packing & Shipping

Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

Services

♦ We are the one of biggest manufacture of electric wire and power cable in China and has more than 20 years producing and marketing experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and own design are welcome. We will produce according to your requirement and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.

FAQ

1. Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc
2. Payment: We accept T/T, L/C , just choose what you like
3. Delivery time: Generally 7~10 working days upon receipt deposit. According to the quantity.
4. MOQ: Generally our MOQ is 1000meters. samples below 20 centimeter can be provided freely.
