PVC Insulated Cables , 1.5mm2 - 800mm2 High Tension XLPE Power Cable Underground
  • Nombre
  • Nombre
  • Nombre
  • Nombre

PVC Insulated Cables , 1.5mm2 - 800mm2 High Tension XLPE Power Cable Underground

MOQ: 500m
Precio: 0.3-99 USD/Meter
Embalaje Estándar: 15 días hábiles
Período De Entrega: los 5000KM por mes
Método De Pago: CARTA DE CRÉDITO, D/A, D/P, T/T
Detalles Información
Descripción del Producto
Información detallada
Lugar de origen
China
Nombre de la marca
QINGDAO YICABLE CABLE
Certificación
IEC,KEMA,ISO,CE,GOST
Nombre del modelo:
YJV22
Tamaño:
1.5mm2 -800mm2
Rendimiento:
Alta tensión
Muestra:
los 20cm gratuitamente
Aplicación:
subterráneo
Tensión nominal:
600/1000V
Resaltar:

copper pvc wire

,

pvc sheathed wiring

Descripción del Producto

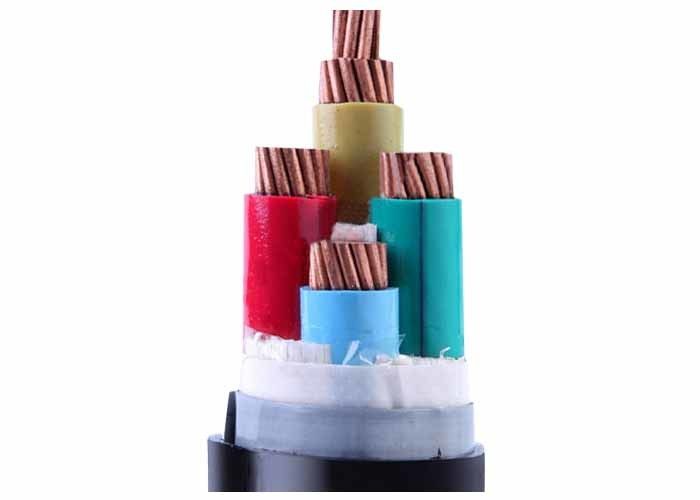

1.5mm2 -800mm2 High Tension XLPE Power Cable Underground 0.6/1kV





Brief Description:

0.6/1kV PVC cables (plastic power cable) is one of high quality products of our company.

The product not only has good electric capability, but also has good chemical stabilization,

simple structure, easy to use, and the laying of cable do not be limited by the fall.



Application:

It is widely used at the transformer circuit which rated voltage is 6000V or under.



Specification:
The product is produced against IEC60502 and IEC60331, .

And the product can be produced against the standard of BS, DIN, and the standard required by the clients.



Features:
1. The long-term permissible operation temperature of the conductor shall not be higher than 70°C.
2. The max temperature of the conductor of cable should less then 160 °C when short circuit. (less then 5 second).
3. The cable is not limited by drop in level when being laid, and the environment temperature shall not be lower than 0°C.
4. Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame resistant

5. Light weight, perfect bending properties, installed and maintained easily and conveniently.
6. Rated voltage: 0.6/1kV, 3.6/6kV.
7. Number of cores: One, two, three, four, five.

8.Cable laying, bend radius≥10 times cable O. D.



Package:In coils, wooden drums, steel drums or steel-wooden drums.



We could producing according to the customers' requirements.Welcome your request for any quotations!





Type Name Usage
VV PVC insulated PVC sheathed power cable

Can be laid at indoor, tunnel and tube.

Cable cannot under take mechanism outside force
VLV
VY PVC insulated and PE sheathed power cable

Can be laid at indoor, tunnel tube and serious polluted places.

Cable cannot undertake mechanism outside force
VLY
VV22

PVC insulated steel belt armored and

PVC sheathed power cable

Can be laid at indoor, tunnel tube and mining well.

Cable cannot undertake mechanism outside force
VLV22
VV23

PVC insulated steel belt armored and

PE sheathed power cable

Can be laid at indoor, tunnel tube mining well and

serious polluted places.

Cable cannot undertake mechanism outside force
VLV23
VV32

PVC insulated fine steel wire armored

PVC sheathed power cable

Can be laid at indoor, underground and mining well.

Cable can undertake mechanism outside force
VLV32
VV33

PVC insulated fine steel wire armored

PE sheathed power cable

Can be laid at indoor, underground .

Cable can under take mechanism outside force
VLV33
VV42

PVC insulated thick steel wire armored

PVC sheathed power cable

Can be laid at indoor, underground,mining well.

Cable can under take mechanism outside force
VLV42
VV43

PVC insulated fine steel wire armored

PE sheathed power cable

Can be laid at indoor, underground,mining well and the places

of be terrible polluted.

Cable can under take mechanism outside force



PVC Insulated Cables , 1.5mm2 - 800mm2 High Tension XLPE Power Cable Underground 0
